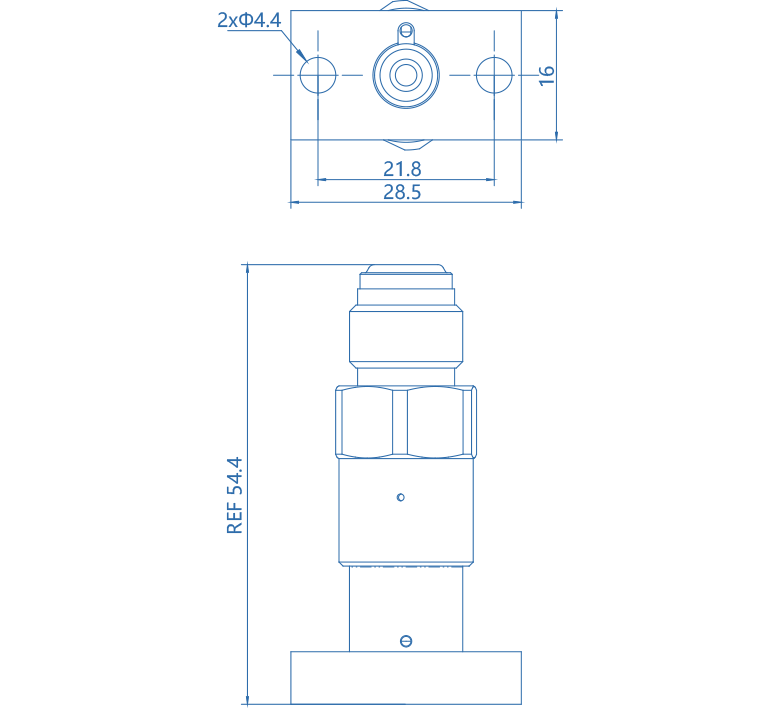

VICV2 - IGS Check Valve

IGS Check Valve

IGS Check Valve

Product FeaturesProduct Features

W-seal
Used for pipeline purging
100% Helium leak tested
Wetted surface treated with EP, max. 5 μin. Ra

ParameterParameter

Max. Working Pressure
150 psig
Max. Working Temp
14℉~176℉(-10℃~80℃)
Surface Finish
Max. 5μin. Ra
Cracking Pressure
≤0.33 psig
Resealing Pressure
≤4 psig（Back Pressure）
Leak Rate (Internal)
1x10-9 mbar·l/s He
Leak Rate (External)
1x10-8 mbar·l/s He
Flow Capacity
Cv=0.35

Material QualityMaterial Quality

Body
316L Secondary Remelt
Sealing Material
FKM / FFKM / EPDM
