VSR-10PH - Pressure Regulator

Pressure Regulator

Pressure Regulator

Product FeaturesProduct Features

Low pressure, large flow pressure reducer
Stainless steel 316L body
High precision, high sensitivity
2 or 3 ports configuration
Stable output pressure
Suitable for oxygen
Seals conform to USP Class VI and BPE design
Suitable for biotechnology and pharmaceutical applications

ParameterParameter

Inlet pressure P1
max. 20 bar
Outlet pressure P2
2/3/4/7/10 bar

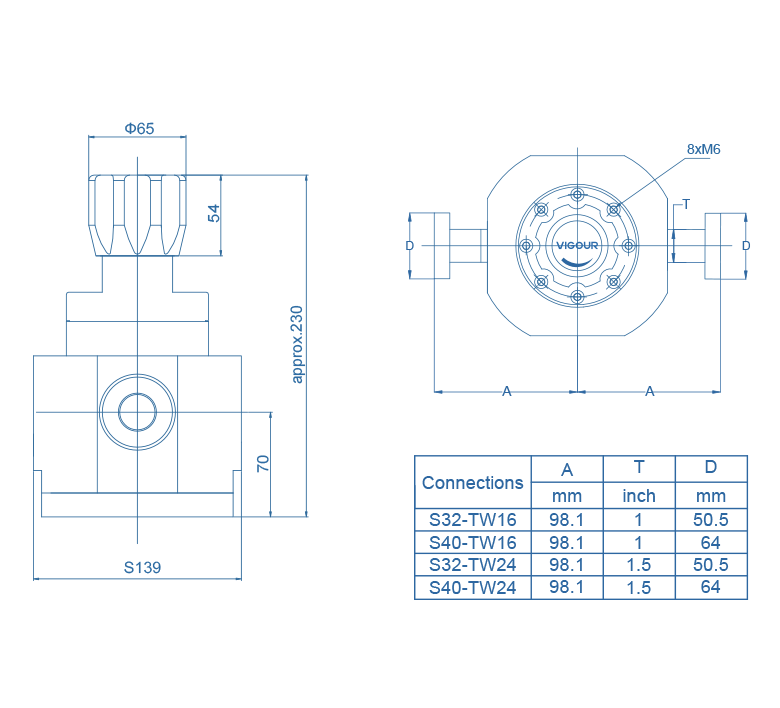

Inlets and Outlets
see ordering info
Temperature range
-15℃ to +74℃
Leak rate
Bubble-tight
Flow capacity
Cv=10.0

Material QualityMaterial Quality

body
316L
Valve seat
EPDM
Diaphragm
PTFE
