VSR-3PH - Pressure Regulator

Pressure Regulator

Pressure Regulator

Product FeaturesProduct Features

Line pressure regulator
Stainless steel 316L body
2 or 3 ports configuration
Stable outlet pressure
Hand wheel adjustment, precise control of pressure
Tested for use with oxygen
Clamp standard ISO2852(ASME BPE optional)
Seals conform to USP Class VI and BPE design

ParameterParameter

Inlet pressure P1
max. 40 bar
Outlet pressure P2
2/3/4/8/10 bar

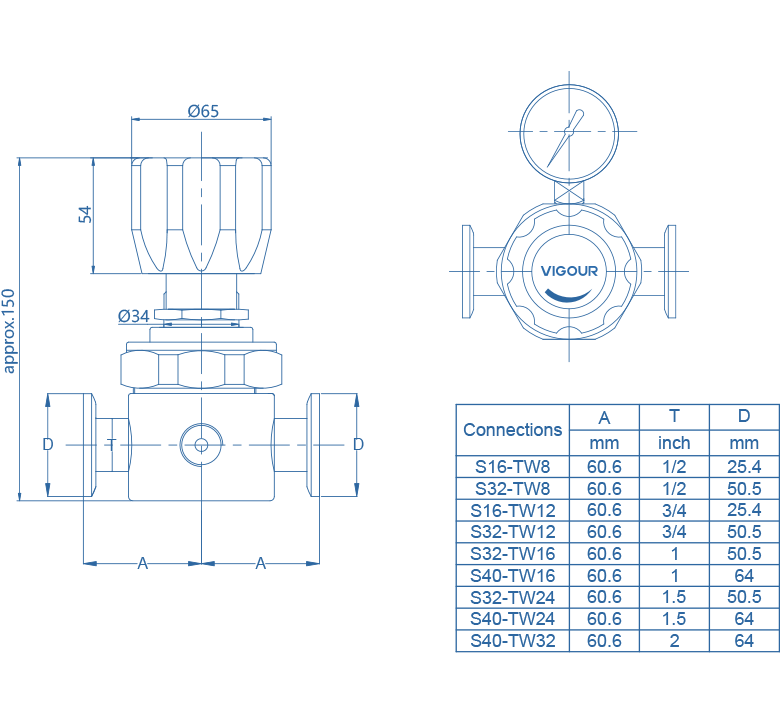

Inlets and Outlets
see ordering info
Temperature range
-30℃ to +74℃
Leak rate (to atmosphere)
1x10-8mbar l/s He
Leak rate (via seat)
1x10-6mbar l/s He
Flow capacity
Cv=1.7

Material QualityMaterial Quality

Body
316L
Valve seat
PCTFE
Diaphragm
Hastelloy®C276
O-ring
Viton®(FKM) / Kalrez®(FFKM) 可选
Filter
SS 316L
