VIMCV - Modular Check Valves

Modular Check Valves

Modular Check Valves

Product FeaturesProduct Features

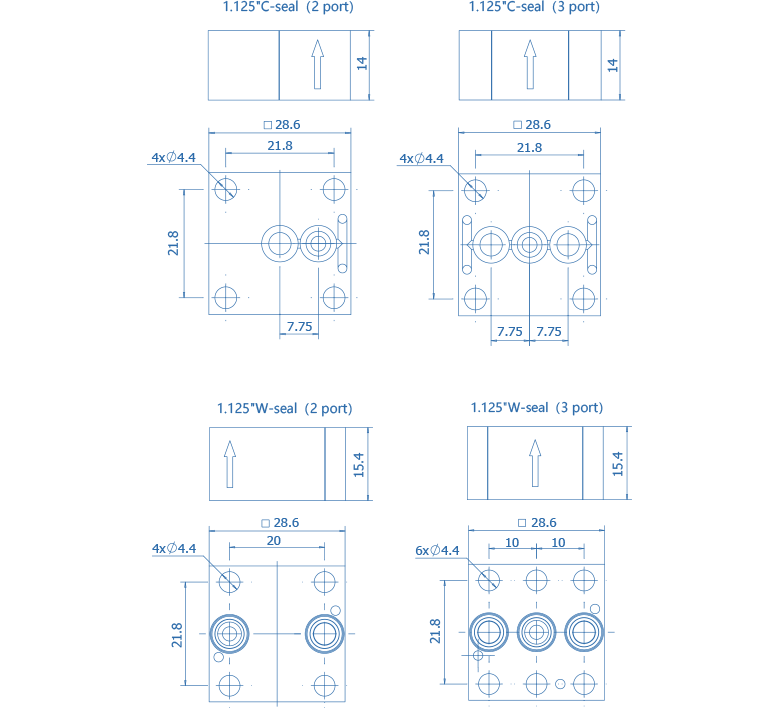

C-seal or W-seal
Compact structure, stackable for use
The wet surface is treated with EP, Max. 5μin. Ra
100% Helium-leak-tested

ParameterParameter

Max. Working Pressure
150 psig
Max. Working Temp
14℉~176℉(-10℃~80℃)
Suface Finish
Max. 5μin. Ra
Cracking Pressure
≤2 psig
reseating pressure
≤5 psig (back pressure)
Leak Rate
(Internal) 1x10-9 mbar I/s He
Flow Capacity
Cv=0.2

Material QualityMaterial Quality

Body
316L VIM-VAR
