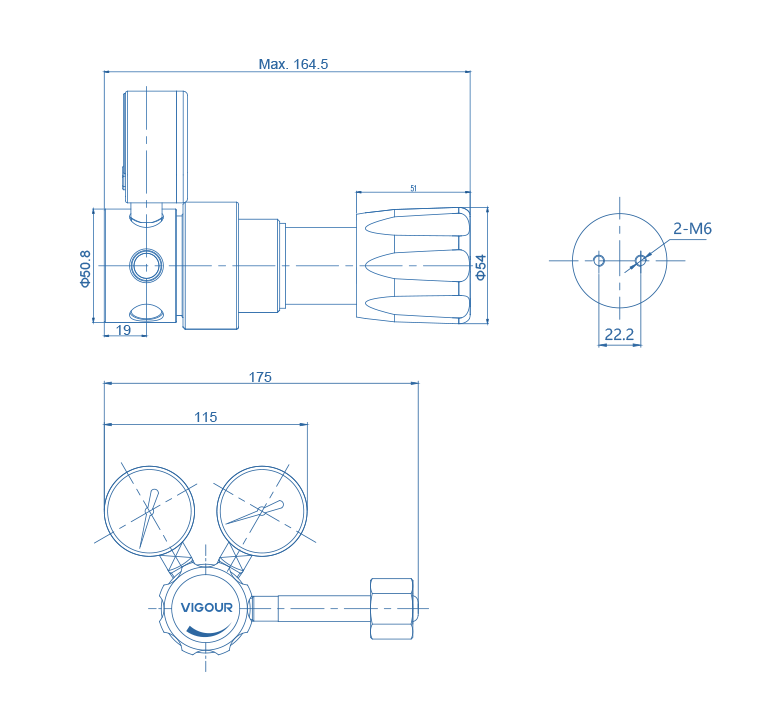

VSR-6H - Cylinder Pressure Regulator
Cylinder Pressure Regulator
Cylinder Pressure Regulator
Product FeaturesProduct Features
  • piston design high pressure regulator
  • Standard equipped with self-pressure relief device
  • Stainless steel 316L body and bonnet for corrosive gases
  • Simple outlet pressure limitation by handwheel
ParameterParameter
  • Type
    single-stage
  • Inlet pressure P1
    max. 300 bar
  • Outlet pressure P2
    35/50/100/200 bar
  • Inlets and Outlets
    1/4”NPT(F)
  • Temperature range
    -30℃ to +74℃
  • Leak rate (to atmosphere)
    1x10-8 mbar I/s He
  • Leak rate (Via seat)
    1x10-6 mbar I/s He
  • Flow capacity
    Cv=0.15
Material QualityMaterial Quality
  • Body regulator
    316L
  • Valve seat
    PCTFE
  • Bonnet
    316L
  • Filter
    SS 316L
  • O-ring
    Viton®(FKM)
