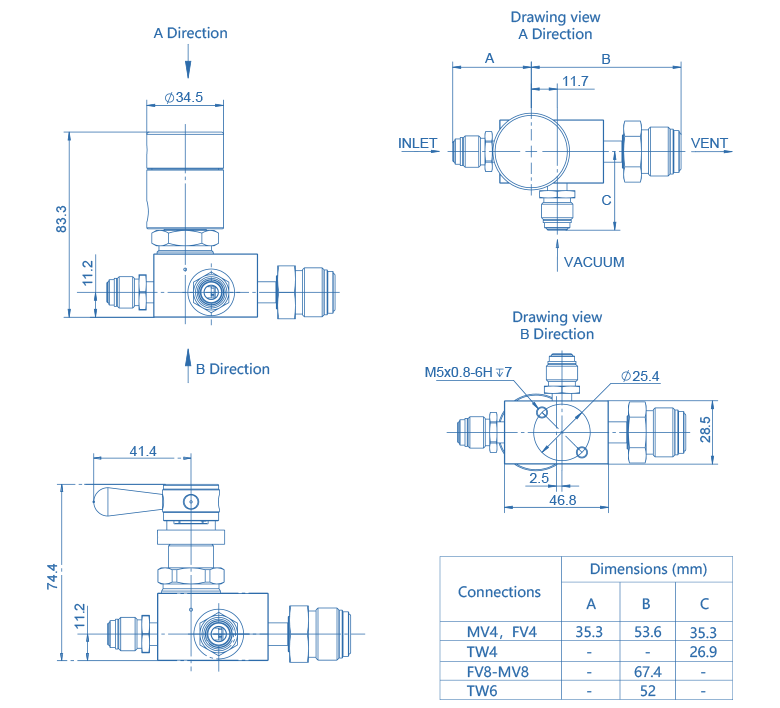

VVGV2 - Vacuum Generator
Vacuum Generator
Vacuum Generator
Product FeaturesProduct Features
  • Manual or pneumatic actuation
  • Monoblock vacuum venturi, diaphragm valve and check valve
  • Compact design
  • Maximum vacuum：-88 KPa
ParameterParameter
  • N2 Inlet pressure
    70 to 110 psig
  • N2 Flow
    60 slpm
  • Vacuum port maximum pressure
    3,000 psig
  • Check valve cracking pressure
    3 psid (0.2 bar) (differential)
  • Operating temperature
    -14~160℉ (-10~71℃)
  • Inlet connection
    1/4” VFS fitting
  • Outlet connection
    1/4” 1/2” VFS fitting, 3/8” Tube weld
  • Vacuum port connection
    1/4” VFS fitting / Tube weld
  • Actuation pressure
    70 to 110 psig
Material QualityMaterial Quality
  • Body
    316L
  • O-ring
    FKM / FFKM (option)
