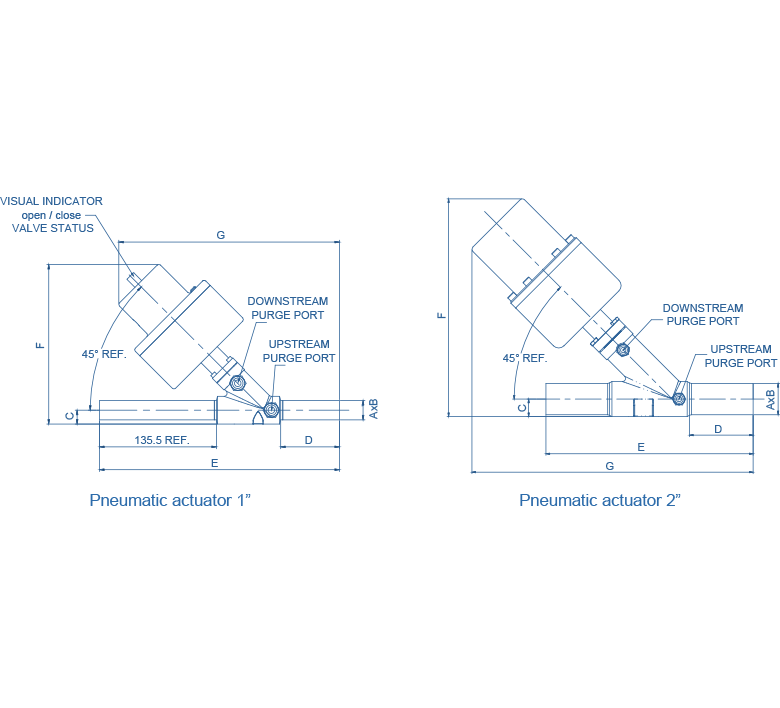

VUBV2 - Bellows Valve
Bellows Valve
Bellows Valve
Product FeaturesProduct Features
  • Tube welding and VFS fitting connection
  • Easy to clean
  • Excellent airtightness characteristics
  • EP treatment is standard for all wetted surfaces
  • All-metal seal to atmosphere
ParameterParameter
  • Pneumatic Pressure
    250 psig
  • Driving force
    4.1~6.9 bar (3/4” or 1”), 6.2~6.9 bar (1.5” or 2”)
  • Surface finish
    10μin. Ra
  • Working Temp
    -22oF ~ 180oF (-30oC ~ 82oC)
  • Internal Leakage Allowance
    <1x10-9 mbar I/s He
  • External Leakage Allowance
    <1x10-9 mbar I/s He
Material QualityMaterial Quality
  • Body
    316L
  • Bellows
    SUS316L / Hastelloy®
  • Seat packing
    PCTFE
