IGS Diaphragm Valves

IGS Diaphragm Valves

Product FeaturesProduct Features

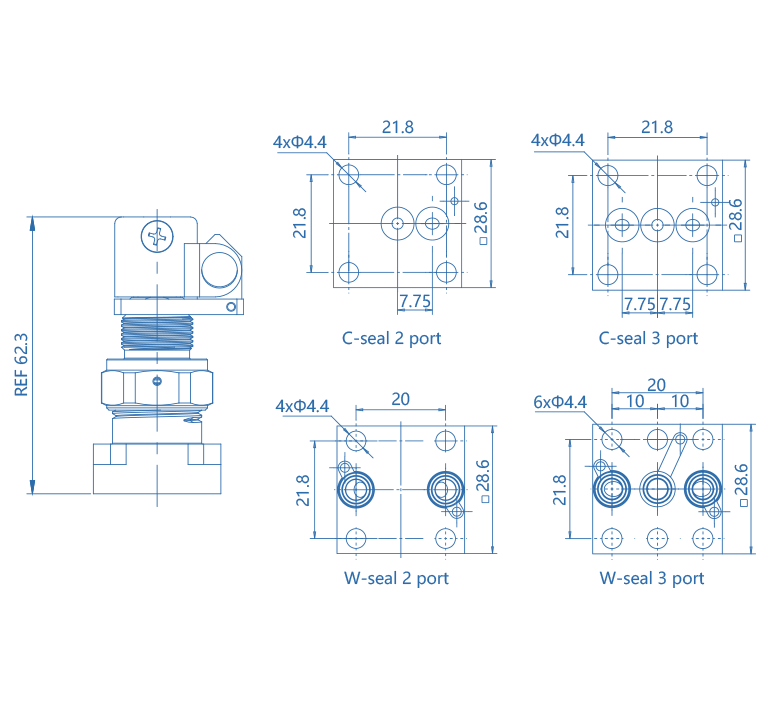

W-seal and C-seal optional
No dead end design
The wet surface is treated with EP, Max. 5μin. Ra.
100% Helium-leak-tested

ParameterParameter

Max. Working Pressure
150 psig
Max. Working Temp
PCTFE 14℉~176℉(-10℃~80℃) / PFA 14℉~302℉(-10℃~150℃)
Surface Finish
Max. 5 μin. Ra
Leak rate (to atmosphere)
1x10-9 mbar I/s He
Leak rate (via seat)
1x10-9 mbar I/s He
Flow Capacity
Cv=0.27

Material QualityMaterial Quality

Body
316L EP / 316L VIM-VAR
Valve seat
PCTFE (PFA / Vespel® optional)
Diaphragm
Elgiloy®
